Self-Closing Wrap

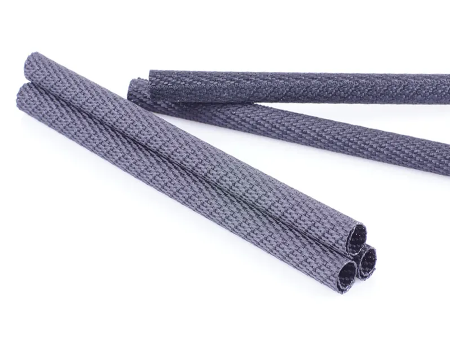

Twill Self-Closing Wrap
Is has excellent abrasion resistance. It is easy to install and repair with open structure. It can be reused and widely used in the wear-resisting protection of automotive wiring harness and rubber pipe.
Powered by Froala Editor
FEATURES
• Flexible
• Excellent abrasion property
• Flame retardant
• UV resistance
• Wear resistance
• Certificate: RoHS
Powered by Froala Editor
TYPICAL APPLICATIONS
Material data: Polyester
- Working temperature: -70˚C~+150˚C
- Melting point: 240℃± 10℃
Standard color: Black
Powered by Froala Editor
Powered by Froala Editor
TECHNICAL DATA
| Property | Test method | Test result |
| High temperature resistance | 150˚C/ 504H | No breakage, no loss of performance |
| Low temperature flexibility | -70˚C/ 4H | No breakage, no loss of performance |
| Abrasion test | ISO 6722-1 | Class 3(4000-14999) |
| Abrasion test | SAE ARP1536B | Class C(200000-399999) |
| Fluid resistance | GMW14327-2016 | No degradation, no brittle cracking |
| VOC | GMW 3235 | <2mg |
| Flammability | FMVSS302 | Burning rate <102mm/min |
Powered by Froala Editor
Powered by Froala Editor

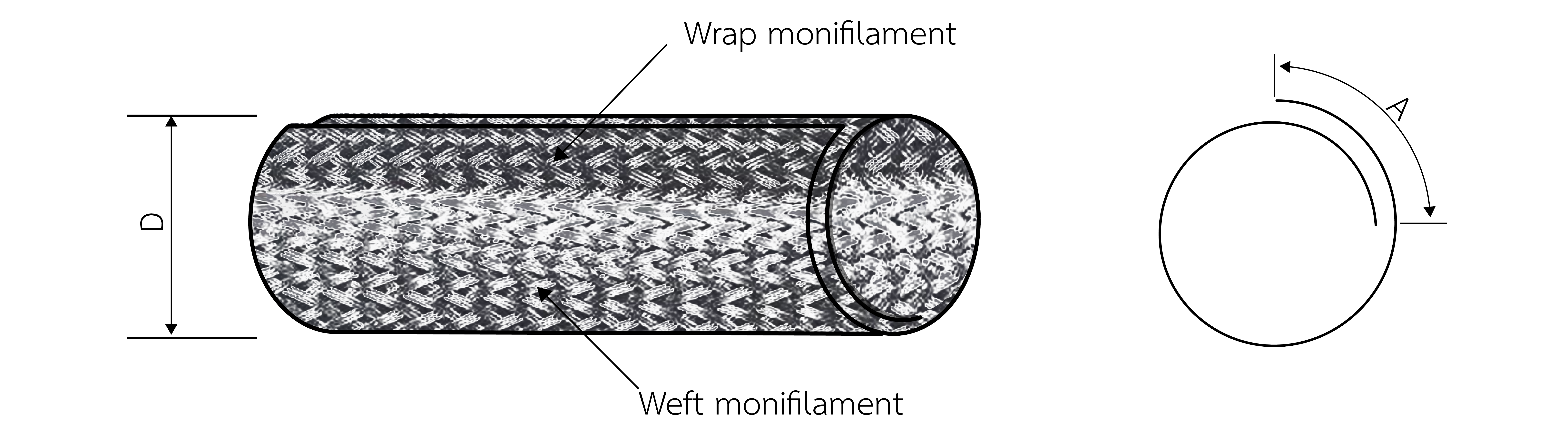

DIMENSIONS
| Part no. | Norminal (D) (mm) | Functional (D)(mm) | Wall thickness (mm) | Overlap ratio A(º) | Packing (m/spool) |
| SSCS2160T-0050 | 5 | 5 | 1.0±0.2 | 90º+40º/-25º | 100 |
| SSCS2160T-0080 | 8 | 8 | 1.0±0.2 | 90º+40º/-25º | 100 |
| SSCS2160T-0100 | 10 | 11 | 1.0±0.2 | 90º+40º/-25º | 100 |
| SSCS2160T-0130 | 13 | 14 | 1.0±0.2 | 90º+40º/-25º | 50 |
| SSCS2160T-0160 | 16 | 17 | 1.0±0.2 | 90º+40º/-25º | 25 |
| SSCS2160T-0190 | 19 | 20 | 1.0±0.2 | 90º±20º | 25 |
| SSCS2160T-0250 | 25 | 26 | 1.0±0.2 | 90º±20º | 25 |
| SSCS2160T-0290 | 29 | 30 | 1.0±0.2 | 90º±20º | 25 |
| SSCS2160T-0320 | 32 | 33 | 1.0±0.2 | 90º±20º | 25 |
| SSCS2160T-0380 | 38 | 40 | 1.0±0.2 | 90º±20º | 25 |
