Corrugated Flexible Conduit Tube

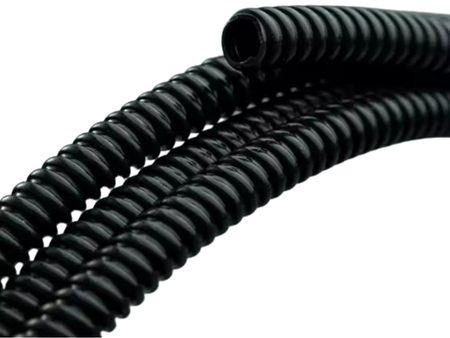

PFA Corrugated flexible conduit
It is widely used for protection of wire harness in special environment with high temperature resistance.
Powered by Froala Editor
Powered by Froala Editor
Powered by Froala Editor
FEATURES
Powered by Froala Editor
TYPICAL APPLICATIONS
Material: Polyfluoroalkoxy
- Operating temperature: -40˚C~+260˚C
Powered by Froala Editor
Powered by Froala Editor
Powered by Froala Editor
Powered by Froala Editor
Powered by Froala Editor
Powered by Froala Editor
TECHNICAL DATA
| Property | Test Method | Result |
| Working temperature | / | -40˚C ~ +260˚C |
| Low temperature impact | QC/T29106 | After the test at -40˚C for 4h, the sample was hitted by a hammar with the weight of 300g freely dropped from 100mm, and the sample did not crack or break. |
| Heat aging | QC/T29106 | After the test at 260˚C for 500H, the sample doesn’t have any embrittlement and power. |
| Flammability | Conform to GB/T 2408 | V0 level |
Powered by Froala Editor
Powered by Froala Editor
Powered by Froala Editor
Powered by Froala Editor
Powered by Froala Editor
Powered by Froala Editor
Powered by Froala Editor
DIMENSIONS
SIZE | Part No. | Slit | I.D. (mm) | O.D. (mm) | Wall thickness (T) (mm) | Packaging (M/Roll) |
Φ7 | LGPFANS-007 | No | 7.0±0.3 | 10.0±0.3 | 0.27±0.05 | 200 |
LGPFANS-107 | Yes | |||||
Φ10 | LGPFANS-010 | No | 10.0±0.3 | 13.0±0.3 | 0.30±0.05 | 100 |
LGPFANS-110 | Yes | |||||
Φ12 | LGPFANS-012 | No | 12.7±0.3 | 16.0±0.3 | 0.30±0.05 | 100 |
LGPFANS-112 | Yes | |||||
Φ17 | LGPFANS-017 | No | 17.0±0.4 | 21.2±0.4 | 0.32±0.05 | 100 |
LGPFANS-117 | Yes | |||||
Φ21 | LGPFANS-021 | No | 21.0±0.4 | 25.0±0.4 | 0.35±0.05 | 100 |
LGPFANS-121 | Yes | |||||
Φ26 | LGPFANS-026 | No | 26.0±0.4 | 32.0±0.4 | 0.40±0.05 | 50 |
LGPFANS-126 | Yes |
