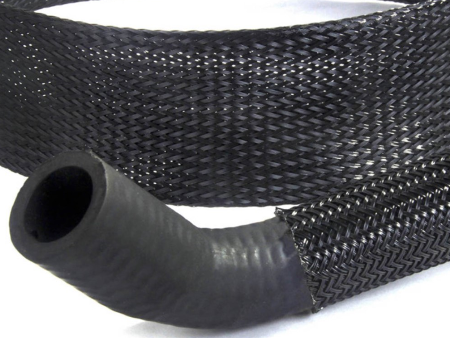

Expandable Braided Sleeving
Widely used in tidying and wearing protection in automotive wiring harness, tubes and other components.
Powered by Froala Editor
FEATURES
• UV light resistant polyester yarn
• Not affected by most chemicals and solvents
• Light weight and flexible and high tensile strength
• Excellently mechanical and weathering property
• Excellent abrasion and cut-through resistance
• Cutting tool: Hot Knife, scissors
Powered by Froala Editor
TYPICAL APPLICATIONS
Material data: PET+PA66
- Working temperature: -40˚C~+150˚C
- Melting point: 240±10˚C
Standard color: Black (Other colors, special size, cut pieces are available on request)
Powered by Froala Editor
Powered by Froala Editor
TECHNICAL DATA
| Property | Test method | Test result |
| Abrasion resistance | ISO6722-1 | Conform to GMW 14327 Class 6(30000~99999 times) |
| Flammability | FMVSS 302 | Combustion rate <100mm/min |
| Low temperature resistance | GMW 14327(-40˚C/ 4h) | No signs of embrittlement or degradation |
| Heat aging resistance | GMW 14327(150˚C/ 504h) | No signs of embrittlement or degradation |
Powered by Froala Editor
Powered by Froala Editor
Powered by Froala Editor

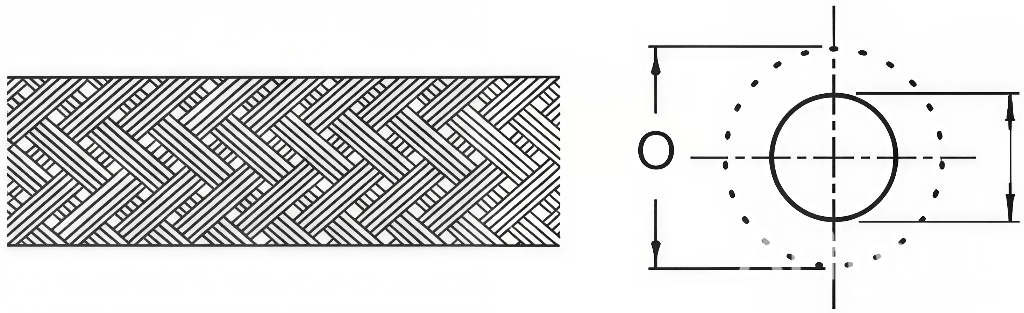

DIMENSIONS
| Part no. | Norminal | Expandable range | Packing (m/spool) | ||
| inch | mm | min. | max.(O) | ||
| SFR1130-0100 | 3/8" | 10 | 7 | 15 | 350 |
| SFR1130-0120 | 1/2" | 12 | 8 | 17 | 300 |
| SFR1130-0160 | 5/8" | 16 | 10 | 23 | 250 |
| SFR1130-0190 | 3/4" | 19 | 13 | 28 | 200 |
| SFR1130-0220 | 7/8" | 22 | 15 | 32 | 200 |
| SFR1130-0250 | 1" | 25 | 18 | 35 | 150 |
| SFR1130-0380 | 1-1/2" | 38 | 30 | 50 | 100 |
| SFR1130-0450 | 1-3/4" | 45 | 35 | 60 | 100 |
