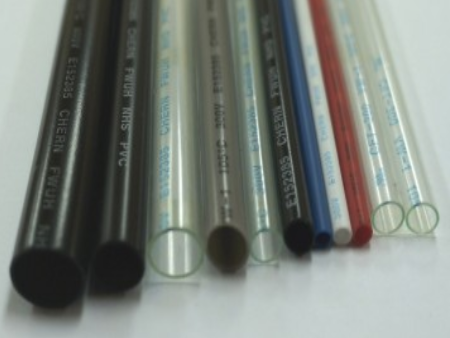

PVC Extruded Insulation Tube (600V)
P.V.C extruded flexible tubing are widely used in assembling various electric equipment because they are uniform in thickness. free form pinholes and have high reliability as electrical insulation.
Powered by Froala Editor
FEATURES
• Excellent flexibility
• Mechanical and dielectric capability
• Flame resistance performance
Powered by Froala Editor
TYPICAL APPLICATIONS
Material : PVC
- Operating temperature: -20˚C~105˚C
- Approvals: CUL File No E152385
Standard color: Black
Powered by Froala Editor
Powered by Froala Editor
Powered by Froala Editor
TECHNICAL DATA
| Property | Value |
| Temperature rating | 105˚C |
| Elomgation | 100 % .min |
| Voiume resistivity | 1010 Ω.cm min |
| Flammability | CUL VW-1 |
| Dielectric voltage | 2500 V / 60sec |
Powered by Froala Editor
Powered by Froala Editor
Powered by Froala Editor
Powered by Froala Editor
Powered by Froala Editor

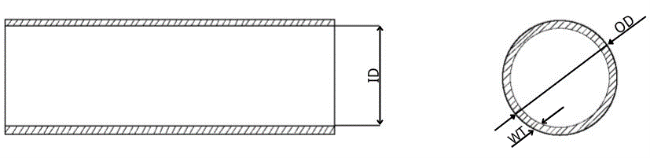

DIMENSIONS
| Part no. | Norminal size (mm) I.D | Tolerance | W.T (mm) | Tolerance | Packing standard (m/roll) |
| CFT-600-0008 | 0.8 | 0.1/-0.05 | 0.45 | 0.1/-0.05 | 305 |
| CFT-600-0010 | 1 | 0.1/-0.05 | 0.45 | 0.1/-0.05 | 305 |
| CFT-600-0015 | 1.5 | 0.1/-0.05 | 0.5 | 0.1/-0.05 | 305 |
| CFT-600-0020 | 2 | 0.1/-0.05 | 0.5 | 0.1/-0.05 | 305 |
| CFT-600-0025 | 2.5 | 0.1/-0.05 | 0.5 | 0.1/-0.05 | 305 |
| CFT-600-0030 | 3 | 0.2/-0.1 | 0.5 | 0.1/-0.05 | 305 |
| CFT-600-0035 | 3.5 | 0.2/-0.1 | 0.5 | 0.1/-0.05 | 305 |
| CFT-600-0040 | 4 | 0.2/-0.1 | 0.5 | 0.1/-0.05 | 305 |
| CFT-600-0045 | 4.5 | 0.2/-0.1 | 0.5 | 0.1/-0.05 | 305 |
| CFT-600-0050 | 5 | 0.2/-0.1 | 0.5 | 0.1/-0.05 | 305 |
| CFT-600-0055 | 5.5 | 0.2/-0.1 | 0.5 | 0.1/-0.05 | 152.5 |
| CFT-600-0060 | 6 | 0.2/-0.1 | 0.5 | 0.1/-0.05 | 152.5 |
| CFT-600-0065 | 6.5 | 0.2/-0.1 | 0.5 | 0.1/-0.05 | 152.5 |
| CFT-600-0070 | 7 | 0.2/-0.1 | 0.5 | 0.1/-0.05 | 152.5 |
| CFT-600-0075 | 7.5 | 0.2/-0.1 | 0.5 | 0.1/-0.05 | 152.5 |
| CFT-600-0080 | 8 | 0.2/-0.1 | 0.5 | 0.1/-0.05 | 152.5 |
| CFT-600-0085 | 8.5 | 0.2/-0.1 | 0.5 | 0.1/-0.05 | 152.5 |
| CFT-600-0090 | 9 | 0.2/-0.1 | 0.5 | 0.1/-0.05 | 100 |
| CFT-600-0095 | 9.5 | 0.2/-0.1 | 0.5 | 0.1/-0.05 | 100 |
| CFT-600-0100 | 10 | 0.2/-0.2 | 0.5 | 0.1/-0.05 | 100 |
| CFT-600-0110 | 11 | 0.5/-0.2 | 0.6 | 0.2/-0.1 | 100 |
| CFT-600-0120 | 12 | 0.5/-0.2 | 0.6 | 0.2/-0.1 | 50 |
| CFT-600-0130 | 13 | 0.5/-0.2 | 0.6 | 0.2/-0.1 | 50 |
| CFT-600-0140 | 14 | 0.5/-0.2 | 0.6 | 0.2/-0.1 | 50 |
| CFT-600-0150 | 15 | 0.5/-0.2 | 0.6 | 0.2/-0.1 | 50 |
| CFT-600-0160 | 16 | 0.5/-0.2 | 0.6 | 0.2/-0.1 | 50 |
| CFT-600-0180 | 18 | 3/-2 | 0.8 | 0.2/-0.1 | 50 |
| CFT-600-0200 | 20 | 3/-2 | 0.8 | 0.2/-0.1 | 50 |
| CFT-600-0300 | 30 | 3/-2 | 1 | 0.2/-2 | 50 |
