Corrugated Flexible Conduit Tube

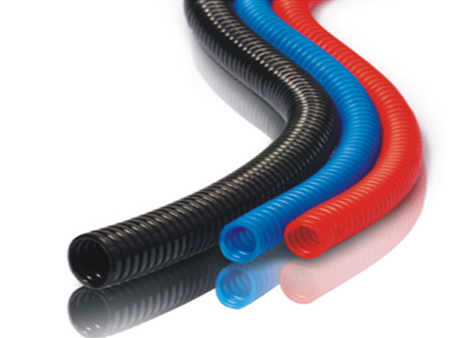

PE Corrugated Flexible Conduit
It is widely used in automotive, mechanical engineering, shipbuilding, electronics industry and other industries.
Powered by Froala Editor
Powered by Froala Editor
FEATURES
• Good abrasion resistance, excellent chemical resistance
Powered by Froala Editor
Powered by Froala Editor
TYPICAL APPLICATIONS
Material data: PE
- Operating temperature: -40˚C~105˚C
Standard color: Black (Other colors, special size, cut pieces are available on request)
Powered by Froala Editor
Powered by Froala Editor
Powered by Froala Editor
TECHNICAL DATA
| Property | Test method | Result |
| Working temperature | / | -40˚C~+105˚C |
| Heat aging | QC/T29106 | No embrittlement and chalking after test at 105˚C for 240h |
| Flammability | / | No flame retardant |
Powered by Froala Editor
Powered by Froala Editor

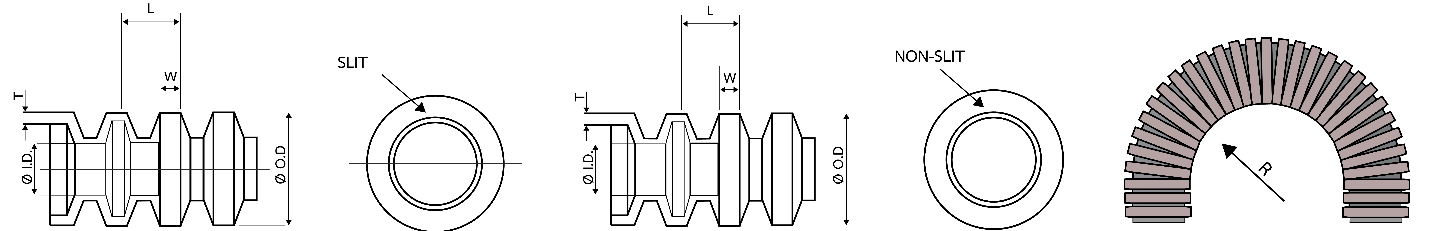

DIMENSIONS
| Size | Part no. | Slit | I.D. (mm) | O.D. (mm) | Wall thickness (T)(mm) | R (mm±10%) | W (mm) | L (mm) | A | Packaging (m/roll) |
| Φ4 | LGE4000NS-004 | No | 4.8±0.3 | 7.0±0.3 | 0.20±0.05 | 5 | 1.4±0.2 | 2.3±0.2 | 10±2° | 100 |
| LGE4000S-104 | Yes | |||||||||
| Φ5 | LGE4000NS-005 | No | 5.5±0.3 | 8.5±0.3 | 0.25±0.05 | 8 | 1.75±0.2 | 2.6±0.2 | 10±2° | 100 |
| LGE4000S-105 | Yes | |||||||||
| Φ7 | LGE4000NS-007 | No | 7.0±0.3 | 10.0±0.3 | 0.27±0.05 | 10 | 2.0±0.2 | 2.9±0.2 | 8±2° | 100 |
| LGE4000S-107 | Yes | |||||||||
| Φ8 | LGE4000NS-008 | No | 8.5±0.3 | 11.0±0.3 | 0.30±0.05 | 15 | 1.8±0.2 | 2.8±0.2 | 8±2° | 100 |
| LGE4000S-108 | Yes | |||||||||
| Φ10 | LGE4000NS-010 | No | 10.0±0.3 | 13.0±0.3 | 0.30±0.05 | 20 | 1.9±0.2 | 2.8±0.2 | 7±2° | 100 |
| LGE4000S-110 | Yes | |||||||||
| Φ12 | LGE4000NS-012 | No | 12.0±0.4 | 15.8±0.4 | 0.30±0.05 | 30 | 2.3±0.2 | 3.3±0.2 | 6±2° | 100 |
| LGE4000S-112 | Yes | |||||||||
| Φ13 | LGE4000NS-013 | No | 13.2±0.4 | 17.5±0.4 | 0.27±0.1 | 30 | 2.4±0.2 | 3.7±0.2 | 8±2° | 100 |
| LGE4000S-113 | Yes | |||||||||
| Φ14 | LGE4000NS-014 | No | 14.5±0.4 | 18.5±0.4 | 0.32±0.05 | 40 | 2.6±0.2 | 3.6±0.2 | 6±2° | 100 |
| LGE4000S-114 | Yes | |||||||||
| Φ15 | LGE4000NS-015 | No | 15.2±0.4 | 19.5±0.4 | 0.27±0.1 | 40 | 2.4±0.2 | 3.6±0.2 | 7±2° | 100 |
| LGE4000S-115 | Yes | |||||||||
| Φ17 | LGE4000NS-017 | No | 17.0±0.4 | 21.2±0.4 | 0.32±0.05 | 45 | 2.4±0.2 | 3.3±0.2 | 5±2° | 100 |
| LGE4000S-117 | Yes | |||||||||
| Φ19 | LGE4000NS-019 | No | 19.5±0.4 | 23.8±0.4 | 0.27±0.1 | 50 | 2.4±0.2 | 3.7±0.2 | 6±2° | 100 |
| LGE4000S-119 | Yes | |||||||||
| Φ21 | LGE4000NS-021 | No | 21.0±0.4 | 25.0±0.5 | 0.35±0.05 | 50 | 2.3±0.2 | 3.4±0.2 | 5±2° | 100 |
| LGE4000S-121 | Yes | |||||||||
| Φ22 | LGE4000NS-022 | No | 22.1±0.4 | 27.0±0.4 | 0.30±0.1 | 55 | 2.9±0.2 | 4.5±0.2 | 6±2° | 50 |
| LGE4000S-122 | Yes | |||||||||
| Φ23 | LGE4000NS-023 | No | 23.0±0.5 | 28.5±0.5 | 0.35±0.05 | 55 | 2.3±0.2 | 3.3±0.2 | 6±2° | 50 |
| LGE4000S-123 | Yes | |||||||||
| Φ25 | LGE4000NS-025 | No | 25.0±0.4 | 30.0±0.5 | 0.35±0.1 | 60 | 3.0±0.2 | 4.5±0.2 | 5±2° | 50 |
| LGE4000S-125 | Yes | |||||||||
| Φ28 | LGE4000NS-028 | No | 28.2±0.4 | 34.0±0.5 | 0.35±0.1 | 70 | 3.0±0.8 | 4.5±0.2 | 5±2° | 25 |
| LGE4000S-128 | Yes | |||||||||
| Φ29 | LGE4000NS-029 | No | 29.0±0.5 | 34.5±0.5 | 0.40±0.05 | 60 | 2.4±0.2 | 3.4±0.2 | 6±2° | 50 |
| LGE4000S-129 | Yes | |||||||||
| Φ32 | LGE4000NS-032 | No | 32.2±0.4 | 38.0±0.5 | 0.35±0.1 | 80 | 3.0±0.2 | 4.5±0.2 | 6±2° | 25 |
| LGE4000S-132 | Yes | |||||||||
| Φ36 | LGE4000NS-036 | No | 36.0±0.5 | 42.5±0.5 | 0.45±0.05 | 70 | 2.9±0.2 | 4.3±0.2 | 6±2° | 25 |
| LGE4000S-136 | Yes | |||||||||
| Φ48 | LGE4000NS-048 | No | 48.0±0.5 | 54.5±0.5 | 0.50±0.05 | 80 | 3.0±0.2 | 4.3±0.2 | 6±2° | 25 |
| LGE4000S-148 | Yes |
