Expandable Braided Sleeving

Model: BSRRB

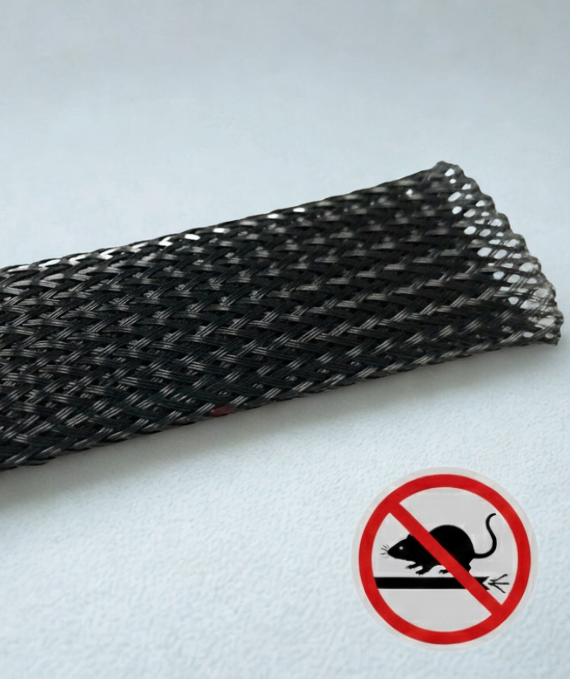

PET rodent resistant braided sleeving

When cables and hoses are exposed to open environments for extended periods, damage caused by rodents often leads to equipment failures and costly repairs. BSRRB, made of braided PET (polyester) fibers with a special repellent formulation, effectively reduces the risk of intrusion from rodents such as rats and voles, ensuring the safety of internal cables. In our tests, even when food was placed inside the cables, the unique material formulation of BSRRB successfully prevented rodent damage.Its flexible, abrasion-resistant construction combined with high expandability allows for quick and convenient installation. Widely applied in food processing plants, warehousing and logistics, automotive, agricultural machinery, as well as telecommunication and power infrastructure, BSRRB provides long-lasting and reliable protection, preventing unexpected cable breaks and equipment downtime caused by rodent infestation.

Powered by Froala Editor


FEATURES


  • UV and chemical resistance
  • Lightweight and flexible
  • High expansion ratio
  • Excellent abrasion resistance
  • Flame retardant

Powered by Froala Editor

TYPICAL APPLICATIONS


  • Continuous operating temperature: -50˚C~150˚C

Standard color: black (Special sizes are available on request.)

Powered by Froala Editor

Powered by Froala Editor

TECHNICAL DATA


Property
Test method
Typical value
Flammability
UL224
VW-1

Abrasion test

ISO 6722
No damage after 6256 times
(Load:4N)

Powered by Froala Editor

Powered by Froala Editor

Powered by Froala Editor

DIMENSIONS




Flame retardant material

Part Number

Nominal Size
(mm)
Size Range

Ends

Spindles

Mesh/inch

Packing Feet
(Meter/Roll)
Min
(mm)
Max
(mm)
BSRRB0064-3
6.4
3.17
9.53
3
24
8±1
1000ft (305M)/R
BSRRB0095-3
9.5
4.76
15.88
3
36
8±1
500ft (153M)/R
BSRRB0127-3
12.7
6.35
23.0
3
48
8±1
500ft (153M)/R
BSRRB0150-3
15.0
7.0
30.0
3
56
8±1
500ft (153M)/R
BSRRB0191-3
19.1
12.70
36.0
3
72
8±1
250ft (77M)/R
BSRRB0254-3
25.4
16.00
47.0
3
80
8±1
250ft (77M)/R
BSRRB0320-3
32.0
19.05
50.0
3
96
7±1
250ft (77M)/R
BSRRB0381-4
38.1
25.4
57.15
4
96
6±1
200ft (61M)/R
BSRRB0445-4
44.5
31.75
69.85
4
120
7±1
200ft (61M)/R
BSRRB0500-5
50.0
44.5
75.0
5
120
5±1
200ft (61M)/R


  • Yarn diameter (mm):0.25±0.01
  • Mesh:Count the number of vertical intersections within 1 inch.
