Expandable Braided Sleeving

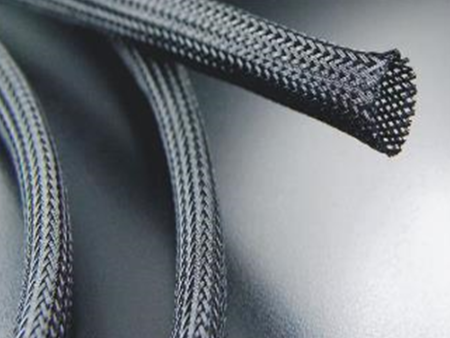

PPS Expandable Sleeving
Product is widely used in the field with the high requirement to fire resistance and high temperature resistance. The field of application including motor vehicle, pathway, spaceflight. communication and military.
Powered by Froala Editor
FEATURES
• High flame-retardant
• High temperature resistance
• Cutting tools: Hot knife, scissors
• Certificate: RoHS
Powered by Froala Editor
TYPICAL APPLICATIONS
Material data: PPS
- Working temperature: -70˚C~+200˚C
- Melting point: 280±10˚C
Standard color: Natural (beige) and black
Powered by Froala Editor
Powered by Froala Editor
TECHNICAL DATA
| Property | Typical value |
| Flammability | VW-1 |
| Heat aging resistance | No signs of embrittlement or degradation after test at 200˚C/ 504h |
Powered by Froala Editor
Powered by Froala Editor

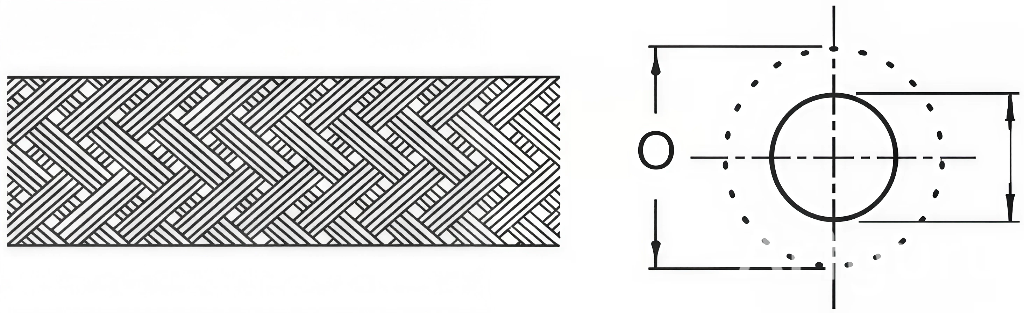

DIMENSIONS
| Part no. | Norminal | Expandable range | Packing (m/spool) | ||
| inch | mm | min. | max.(O) | ||
| SFR1080-0030 | 1/8" | 3.0 | 1 | 6 | 1000 |
| SFR1080-0060 | 1/4" | 6.0 | 3 | 9 | 500 |
| SFR1080-0080 | 5/16" | 8.0 | 5 | 12 | 350 |
| SFR1080-0100 | 3/8" | 10.0 | 7 | 17 | 350 |
| SFR1080-0120 | 1/2" | 12.0 | 8 | 20 | 300 |
| SFR1080-0160 | 5/8" | 16.0 | 10 | 27 | 250 |
| SFR1080-0190 | 3/4" | 19.0 | 14 | 30 | 200 |
| SFR1080-0250 | 1" | 25.0 | 18 | 33 | 200 |
| SFR1080-0320 | 1-1/4" | 32.0 | 20 | 50 | 150 |
| SFR1080-0380 | 1-1/2" | 38.0 | 30 | 60 | 100 |
| SFR1080-0450 | 1-3/4" | 45.0 | 35 | 75 | 100 |
| SFR1080-0500 | 2" | 50.0 | 40 | 80 | 100 |
| SFR1080-0640 | 2-1/2" | 64.0 | 45 | 105 | 100 |
| SFR1080-0760 | 3" | 76.0 | 64 | 120 | 100 |
