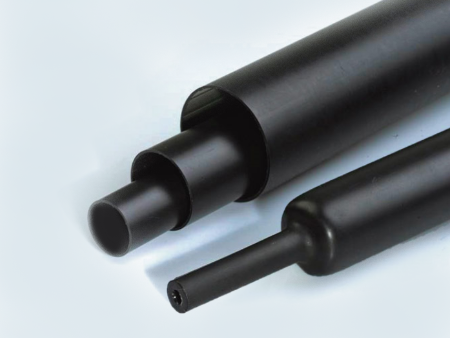

Heavy Wall Adhesive-Lined Polyolefin Tubing
Heavy wall adhesive-lined heat shrink tubing provides maximum reliability for Insulating and protecting cable joints and terminations.
Powered by Froala Editor
FEATURES
• Shrink ratio: 3:1
• Not flame-retardant
• Withstands severe mechanical requirements of U.R.D., submersible and direct burial installations
• High impact, abrasion, corrosion and chemical resistance
• Rated for 1kv, 90℃ continuous use application
• Resists acids and alkalies
• Bonds to a wide variety of substrates
• Thermoplastic adhesive liner provides complete environmental protection and insulation
• UV resistant
• Rated voltage: 1000V
• RoHS compliant
Powered by Froala Editor
Powered by Froala Editor
TYPICAL APPLICATIONS
Material data: Polyolefin
- Operating temperature: -45˚C~110˚C
- Minimum shrink temperature: ≥+70˚C
- Minimum full recovery temperature: ≥+125˚C
Standard color: Black (Other color available upon request)
Powered by Froala Editor
Powered by Froala Editor
Powered by Froala Editor
Powered by Froala Editor
TECHNICAL DATA
| Property | Test method | Test result |
| Tensile strength (MPa) | ASTM D2671 | ≥12 |
| Elongation (%) | ASTM D2671 | ≥300 |
| Tensile strength after aging (MPa) | UL224 158˚C x168hrs | ≥8.4 |
| Elongation at break after aging (%) | UL224 158˚C x168hrs | ≥200 |
| Longitudinal shrink ratio (%) | UL 224 | ≤±10% |
| Dielectric Strength (KV/mm) | IEC 60243 | ≥20 |
| Volume resistance (Ω·cm) | IEC 60093 | ≥1x1014 |
| Water absorption | ASTM D 570 | <0.5 |
Hot melting adhesive
| Property | Test method | Test result |
| Water absorption | ASTM-D570 | <0.2% |
| Vicat softening point | ASTM-E28 | 95℃ |
| Peel strength (PE) | ASTM-D1000 | 120N/25mm |
| Peel strength (AL) | ASTM-D1000 | 80N/25mm |
Powered by Froala Editor
Powered by Froala Editor

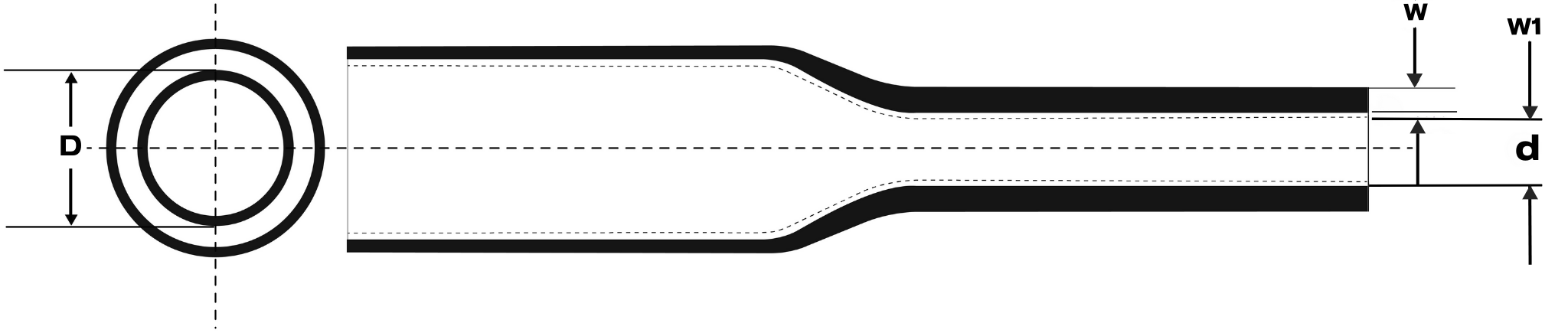

DIMENSIONS
| Part no. | Size (mm) | As supplied(mm) | After recovered(mm) | Standard package (m/pcs) | |||
| ID(D) | ID(d) | Out layer W.T | Adhessive thickness(w1) | Total W.T. (w) | |||
| RSW-0090 | 9.0 | ≥9.0 | ≤3.0 | 2.00±0.30 | 0.55±0.20 | 2.55±0.40 | 1.22 |
| RSW-0130 | 13.0 | ≥13.0 | ≤4.0 | 2.30±0.30 | 0.55±0.20 | 2.85±0.40 | 1.22 |
| RSW-0160 | 16.0 | ≥16.0 | ≤5.0 | 2.30±0.30 | 0.60±0.20 | 2.90±0.50 | 1.22 |
| RSW-0220 | 22.0 | ≥22.0 | ≤6.0 | 2.50±0.40 | 0.60±0.20 | 3.10±0.50 | 1.22 |
| RSW-0230 | 28.0 | ≥28.0 | ≤6.0 | 2.70±0.40 | 0.70±0.25 | 3.40±0.50 | 1.22 |
| RSW-0330 | 33.0 | ≥33.0 | ≤8.0 | 2.80±0.40 | 0.80±0.25 | 3.60±0.60 | 1.22 |
| RSW-0400 | 40.0 | ≥40.0 | ≤12.0 | 3.10±0.50 | 0.80±0.25 | 3.90±0.60 | 1.22 |
| RSW-0450 | 45.0 | ≥45.0 | ≤12.0 | 3.50±0.50 | 0.80±0.25 | 4.30±0.50 | 1.22 |
| RSW-0550 | 55.0 | ≥55.0 | ≤16.0 | 3.60±0.50 | 0.80±0.25 | 4.40±0.70 | 1.22 |
| RSW-0650 | 65.0 | ≥65.0 | ≤19.0 | 3.60±0.50 | 0.80±0.25 | 4.40±0.70 | 1.22 |
| RSW-0750 | 75.0 | ≥75.0 | ≤22.0 | 3.60±0.50 | 0.80±0.25 | 4.40±0.70 | 1.22 |
| RSW-0850 | 85.0 | ≥85.0 | ≤25.0 | 3.60±0.50 | 0.80±0.25 | 4.40±0.70 | 1.22 |
| RSW-0950 | 95.0 | ≥95.0 | ≤30.0 | 3.60±0.50 | 0.80±0.25 | 4.40±0.70 | 1.22 |
| RSW-1050 | 105.0 | ≥105.0 | ≤30.0 | 3.80±0.60 | 0.80±0.25 | 4.60±0.70 | 1.22 |
| RSW-1200 | 120.0 | ≥120.0 | ≤39.0 | 3.80±0.60 | 0.80±0.25 | 4.60±0.70 | 1.22 |
| RSW-1300 | 130.0 | ≥130.0 | ≤40.0 | 3.80±0.60 | 0.80±0.25 | 4.60±0.70 | 1.22 |
| RSW-1400 | 140.0 | ≥140.0 | ≤42.0 | 3.80±0.60 | 0.80±0.25 | 4.60±0.70 | 1.22 |
| RSW-1600 | 160.0 | ≥160.0 | ≤50.0 | 3.80±0.60 | 0.80±0.25 | 4.60±0.70 | 1 |
| RSW-1800 | 180.0 | ≥180.0 | ≤60.0 | 3.80±0.60 | 0.80±0.25 | 4.60±0.70 | 1 |
| RSW-2000 | 200.0 | ≥200.0 | ≤69.0 | 3.80±0.60 | 0.80±0.25 | 4.60±0.70 | 1 |
| RSW-2350 | 235.0 | ≥235.0 | ≤69.0 | 4.10±0.60 | 0.80±0.25 | 4.60±0.70 | 1 |
