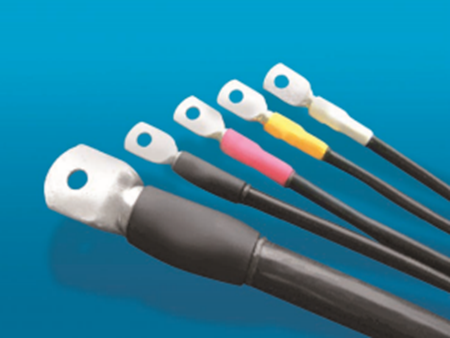

Dual Wall Adhesive-Lined Polyolefin Tubing
Environmentally seals and protects a wide variety of electrical applications, including wire splices, breakouts, and connector-to-cable transitions.
Powered by Froala Editor
FEATURES
• 4:1 shrink ratio allows a few sizes to cover a wide range of splice and component diameters.
• Flame-retardant and mechanically tough, the tubing provides strain relief and abrasion protection of wire splices, terminals, and other components.
• Thick adhesive liner forms an effective barrier against fluids and moisture and performs well at an extended temperature range RoHS compliant.
Powered by Froala Editor
TYPICAL APPLICATIONS
Material data: Polyolefin
- Operating temperature: -55˚C~125˚C
- Minimum shrink temperature: 110˚C
- Minimum full recovery temperature: 120˚C
Standard color: Black
Powered by Froala Editor
Powered by Froala Editor
Powered by Froala Editor
TECHNICAL DATA
| Property | Unit | Performance requirements | Testing method | Test result | |
| Longitudinal change | % | 0 to 10 | ASTM D2671/ U224 | 4% | |
| Tensile strength | MPa | ≥10.4 | ASTM D2671 | 14.8 | |
| Breakage elongation | % | ≥200 | ASTM D2671 | 350 | |
| Cold impact: 4H, -55±2°C | \ | No crack | U224 | No crack | |
| Heat Shock: 4H, 250±3°C (only jacket) | \ | No drip , no flow, no crack | U224 | Pass | |
| Heat aging (only jacket) 168H, 175±2°C | Tensile strength | MPa | ≥7.3 | U224 | 10.2 |
| Breakage elongation | % | ≥100 | U224 | 250 | |
| Volume resistivity | Ω.cm | ≥1x1012 | ASTM D2671 | 1x1013 | |
| Flammability (only jacket) | s | 60S self-extinguish | U224 | 30 | |
| Copper corrosion | / | 158℃,168h,Pass | U224 | Pass | |
| Water absorption | % | ≤1.0% | ASTM D570 | 0.3 | |
Powered by Froala Editor
Powered by Froala Editor

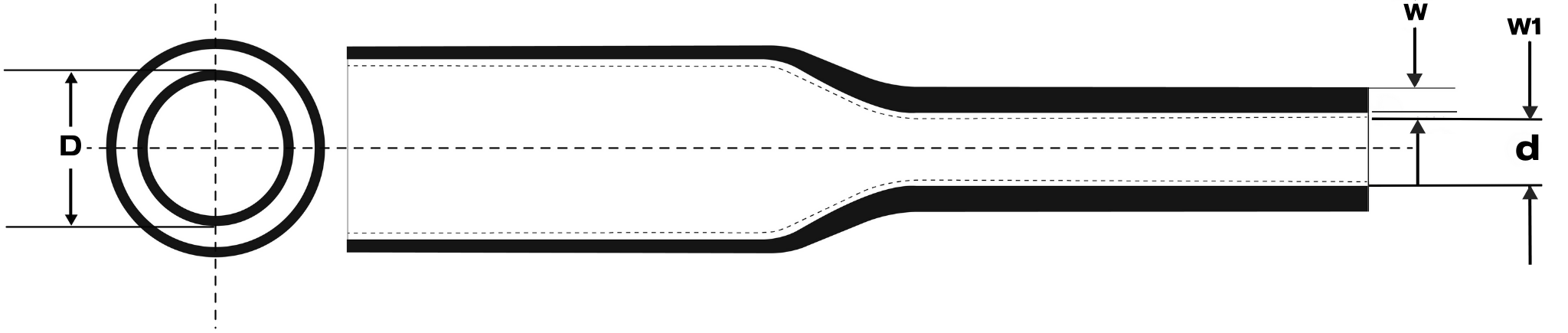

DIMENSIONS
| Part no. | Size(mm) | As supplied(mm) | After recovered (mm) | Length(M) | ||
| ID(D) min | ID(d) max | W (Total thickness) | W1 (Adhesive liner) | |||
| SDC5-0040 | 4.0 | 4.0 | 1.0 | 1.3±0.3 | 0.55 | 100 |
| SDC5-0060 | 6.0 | 6.0 | 1.5 | 1.5±0.3 | 0.75 | 100 |
| SDC5-0080 | 8.0 | 8.0 | 2.0 | 1.6±0.3 | 0.8 | 100 |
| SDC5-0090 | 9.02 | 9.02 | 2.25 | 1.7±0.3 | 0.8 | 1.22 |
| SDC5-0100 | 10.0 | 10.0 | 2.5 | 1.8±0.3 | 0.9 | 1.22 |
| SDC5-0110 | 11.0 | 11.0 | 2.7 | 1.8±0.3 | 0.9 | 1.22 |
| SDC5-0120 | 12.0 | 12.0 | 3.0 | 2.0±0.3 | 0.9 | 1.22 |
| SDC5-0140 | 14.0 | 14.0 | 3.5 | 2.2±0.3 | 1.0 | 1.22 |
| SDC5-0150 | 15.0 | 15.0 | 3.7 | 2.2±0.3 | 1.0 | 1.22 |
