Self-Closing Wrap

Model: SSCW2160

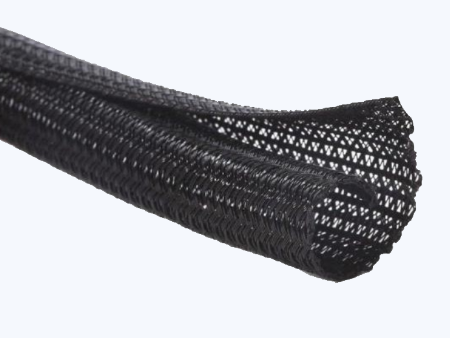

PET Self-Closing Braided Wrap

Widely used in wear resisting and sorting of wiring harness in automotive, mechanical equipment and other industry.

Powered by Froala Editor


FEATURES


• Flame retardant
• UV resistance
• Resistant to most chemicals and solvents
• Excellent abrasion resistance

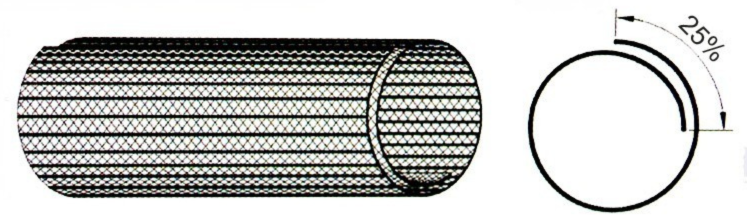

• Edge overlap of 25% and more
• Certificate: RoHS

Powered by Froala Editor

TYPICAL APPLICATIONS


Material data: Polyester

  • Working temperature: -40˚C~+150˚C
  • Melting point: 240±10˚C

Standard color: Black

Powered by Froala Editor

Powered by Froala Editor

TECHNICAL DATA


Property
Test method
Test result
Low temperature resistance
GMW 14327(-40˚C/ 4h)
No crack and degradation
Heat aging resistance
GMW 14327(150˚C/ 504h)
No crack and degradation
Flammability
FMV SS302
Self-extinguishing
Abrasion resistance
ISO6722-1
Conform to GMW 14327 Grade 3(2000-3999 cycles)

Powered by Froala Editor

Powered by Froala Editor

Powered by Froala Editor

Powered by Froala Editor

Powered by Froala Editor

Powered by Froala Editor

DIMENSIONS




Part no.
ID
(mm)
Overlap
Spread width
Packaging
(m/r)
SSCW2160-0030325%
16~20
200
SSCW2160-0060
625%
30~34100
SSCW2160-0100
1025%
42~46
50
SSCW2160-0130
1325%
54~5950
SSCW2160-0160
1625%
70~7650
SSCW2160-0190
1925%
85~9025
SSCW2160-0250
2525%
110~11725
