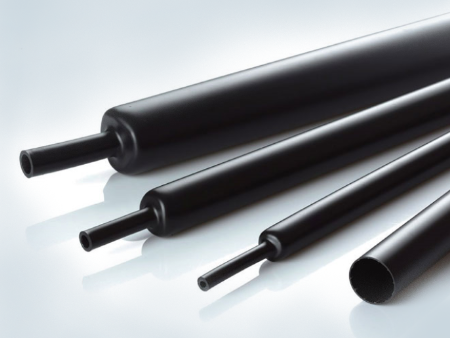

Non Flame Retardant Medium Wall Adhesive-Lined Cross-Linked Polyolefin Heat Shrink Tubing
Request a Quote
product thumbnail

Medium Wall Adhesive-Lined Polyolefin Tubing

Model: RSM
Non Flame Retardant Medium Wall Adhesive-Lined Cross-Linked Polyolefin Heat Shrink Tubing

Medium wall heat shrinkable tubing suitable for a variety of low voltage electrical and mechanical application, where lighter weight and greater flexibility are important.

Powered by Froala Editor

FEATURES

• Shrink ratio: 3:1
• Not flame-retardant
• Seal and protect cable splice and terminations
• Rugged mechanical protection
• Strain relief for delicate wire connections
• Resists puncture and abrasion damage
• Resists acids and alkalies
• Bonds to a wide variety of substrates
• UV resistant
• Rated voltage: 1000V
• RoHS compliant

Powered by Froala Editor

Powered by Froala Editor

TYPICAL APPLICATIONS

Material data: Polyolefin

  • Operating temperature: -45˚C~+110˚C
  • Minimum shrink temperature: 70˚C
  • Minimum full recovery temperature: 125˚C

Standard color: Black (Other color available upon request)

Powered by Froala Editor

Powered by Froala Editor

Powered by Froala Editor

TECHNICAL DATA

PropertyTest methodTest result
Tensile strength (MPa)
ASTM D2671
≥10.4
Elongation (%)
ASTM D2671
≥200
Tensile strength after aging (MPa)
UL224 158˚C x168hrs
≥8.4
Elongation at break after aging (%)
UL224 158˚C x168hrs
≥200
Longitudinal shrink ratio (%)
UL 224≤±10%
Dielectric Strength (KV/mm)
IEC 60243
≥20
Volume resistance (Ω·cm)
IEC 60093
≥1x1014
Water absorption
ASTM D 570
<0.5

Hot melting adhesive
PropertyTest methodTest result
Water absorptionASTM-D570
<0.2%
Vicat softening pointASTM-E28
95℃
Peel strength (PE)ASTM-D1000
120N/25mm
Peel strength (AL)ASTM-D1000
80N/25mm

Powered by Froala Editor

Powered by Froala Editor

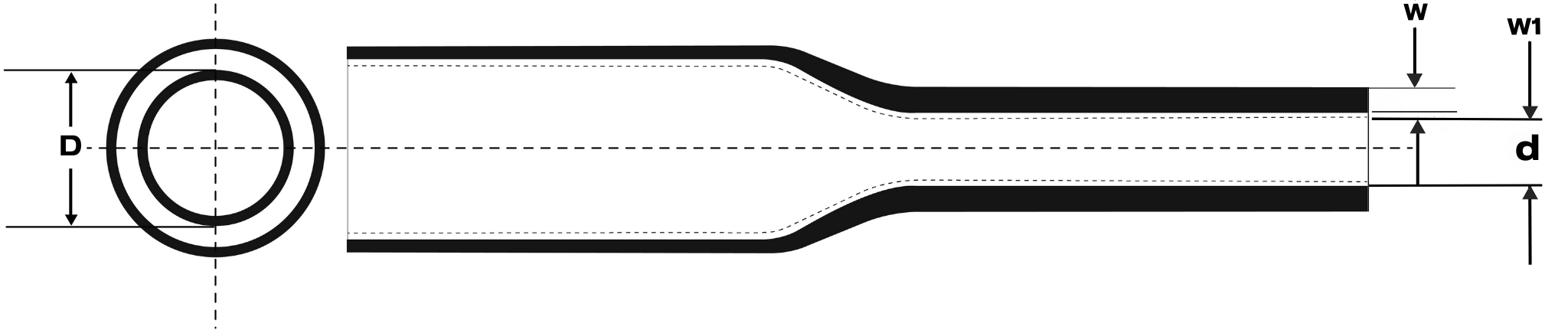

DIMENSIONS



Part no.
Size
(mm)
As supplied(mm)
After recovered(mm)
Standard package
(m/pcs)
ID(D)
ID(d)
Out layer W.T
Adhessive thickness(w1)
Total W.T.(w)
RSM-00808.0≥8.0
≤2.0
1.40±0.20
0.45±0.151.85±0.30
1.22
RSM-0120
12.0≥12.0
≤3.0
1.40±0.20
0.50±0.151.90±0.301.22
RSM-0160
16.0≥16.0
≤5.0
1.50±0.20
0.55±0.202.15±0.351.22
RSM-0190
19.0≥19.0
≤5.6
1.80±0.20
0.60±0.20
2.40±0.401.22
RSM-0220
22.0≥22.0
≤6.0
2.00±0.300.60±0.20
2.60±0.40
1.22
RSM-0280
28.0≥28.0
≤6.0
2.40±0.300.95±0.25
3.30±0.45
1.22
RSM-0330
33.0≥33.0
≤8.0
2.50±0.300.80±0.25
3.30±0.45
1.22
RSM-0400
40.0≥40.0
≤12.0
2.40±0.300.80±0.25
3.30±0.45
1.22
RSM-0440
44.0≥44.0
≤14.02.40±0.30
0.80±0.25
3.30±0.45
1.22
RSM-0550
55.0≥55.0
≤16.0
2.40±0.30
0.80±0.25
3.30±0.45
1.22
RSM-0650
65.0≥65.0
≤19.0
2.50±0.30
0.80±0.25
3.30±0.45
1.22
RSM-0750
75.0≥75.0
≤22.0
2.90±0.30
0.80±0.25
3.70±0.50
1.22
RSM-0850
85.0≥85.0
≤25.0
2.90±0.30
0.80±0.25
3.70±0.50
1.22
RSM-0950
95.0≥95.0
≤30.0
3.00±0.30
0.80±0.25
3.80±0.50
1.22
RSM-1150
115.0≥115.0
≤34.0
3.00±0.30
0.80±0.25
3.80±0.50
1.22
RSM-1400
140.0≥140.0
≤42.0
3.00±0.300.80±0.25
3.80±0.50
1.22
RSM-1600
160.0≥160.0
≤50.0
3.20±0.30
0.80±0.25
4.00±0.50
1
RSM-1800
180.0≥180.0
≤65.0
3.80±0.30
0.80±0.25
4.60±0.50
1
RSM-2000
200.0≥200.0
≤69.0
3.80±0.30
0.80±0.254.60±0.50
1
RSM-2350
235.0≥235.0
≤69.0
3.80±0.30
0.80±0.25
4.60±0.50
1
RSM-2500
250.0≥250.0
≤75.0
4.00±0.30
0.80±0.25
4.60±0.50
1
