Medical Grade Heat Shrink Tubing

Model: MTP

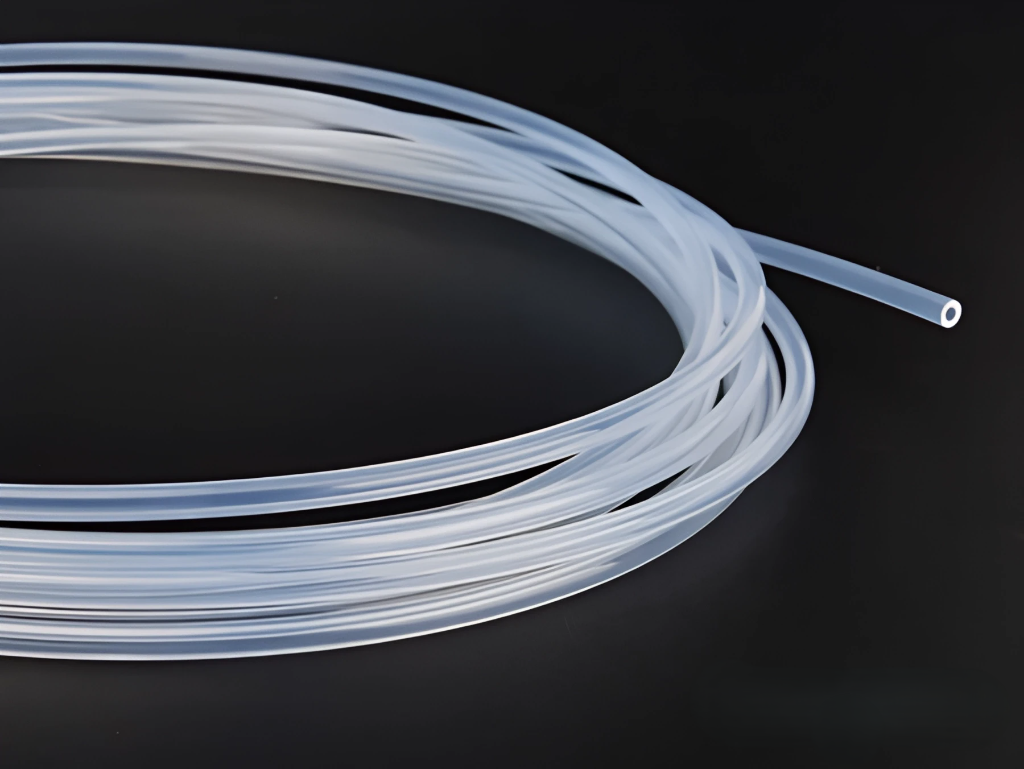

Medical grade PTFE heat shrinkable tubing

MTP is made of high performance medical grade polytetrafluoroethylene (PTFE) material. PTFE has the best physical properties among plastics, which exhibits the highest performance in electrical property, low friction coefficient, solvent resistance and high temperature resistance. It can provide the most reliable protection for covered medical devices.

Powered by Froala Editor

FEATURES

  • Shrink ratio: 1.7:1/4:1
  • Excellent physical, chemical and electrical performance
  • Excellent electrical insulation properties
  • High temperature and abrasion resistance
  • Compatibility with gamma rays and ETO sterilization
  • Double plastic bags and plastic spool package
  • ISO 10993 and RoHS certificated

Powered by Froala Editor

Powered by Froala Editor

TYPICAL APPLICATIONS

  • Continuous operating temperature: -65˚C~260˚C
  • Full recovery temperature: Above 350˚C

Standard color: clear (Other colors, special sizes, and cut pieces are available on request.)

Powered by Froala Editor

Powered by Froala Editor

TECHNICAL DATA

Property
Specification Requirement
Test Method
Typical Value
Tensile strength
≥17.3MPa
ASTM D2671
≥22MPa
Elongation at break
≥200%
ASTM D2671
≥300%
Heat shock
No cracking
ASTM D2671
(400˚C/4 hrs)		No cracking
Low temperature flexibility
No cracking
ASTM D2671
(-65˚C/4 hrs)		No cracking
Volume resistivity
≥1015Ω‧cm
ASTM D2671
≥1015Ω‧cm
Dielectric strength
≥34kV/mm
ASTM D2671
34kV/mm
Copper corrosion
No corrosion
ASTM D2671
(158˚C/168 hrs)
No corrosion
Flammability
VW-1
UL 224
Pass
Excellent electrical insulation properties
No heavy metals contained
Compatibility with gamma rays and ETO sterilization

Powered by Froala Editor

Powered by Froala Editor

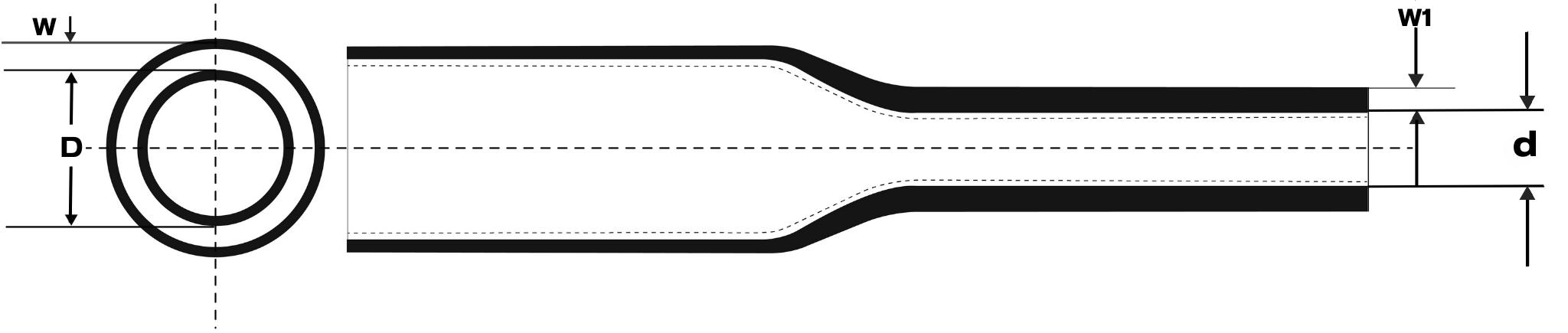

DIMENSIONS




Part Number
As supplied (mm)
 After recovered (mm)

Standard Length
(Meter)
I.D.(min)
(D)
W. T.(nominal)
(W)
I.D.(max)
(d)
W.T.(nominal)
(w1)

1.7:1 Shrink ratio(Thick Type)
MTP-0005
0.5
0.10∼0.20
0.4
0.20∼0.30
200
MTP-0010
0.8
0.10∼0.20
0.6
0.20∼0.30
200
MTP-0015
1.3
0.15∼0.25
0.9
0.20∼0.30
200
MTP-0020
1.8
0.15∼0.25
1.2
0.25∼0.35
200
MTP-0025
2.2
0.15∼0.25
1.5
0.25∼0.35
200
MTP-0030
2.7
0.15∼0.25
1.8
0.25∼0.35
200
MTP-0035
3.2
0.15∼0.25
2.2
0.25∼0.35
200
MTP-0040
3.7
0.15∼0.25
2.4
0.25∼0.35
200
MTP-0045
4.2
0.15∼0.25
2.7
0.25∼0.35
100
MTP-0050
4.7
0.15∼0.25
3.1
0.25∼0.35
100
MTP-0055
5.3
0.15∼0.25
3.3
0.25∼0.35
100
MTP-0060
5.8
0.20∼0.30
3.6
0.33∼0.43
100
MTP-0065
6.3
0.20∼0.30
3.8
0.33∼0.43
100
MTP-0070
6.8
0.20∼0.30
4.2
0.33∼0.43
100
MTP-0075
7.3
0.20∼0.30
4.5
0.33∼0.43
100
MTP-0080
7.8
0.20∼0.30
4.8
0.33∼0.43
100
MTP-0085
8.3
0.20∼0.30
5.0
0.33∼0.43
100
MTP-0090
8.8
0.20∼0.30
5.3
0.33∼0.43
100
MTP-0095
9.3
0.20∼0.30
5.6
0.33∼0.43
100
MTP-0100
9.8
0.20∼0.30
5.9
0.33∼0.43
100

1.7:1 Shrink ratio(Thin Type)
MTPTW-0005
0.5
0.05∼0.15
0.4
0.10∼0.20
200
MTPTW-0010
0.8
0.05∼0.15
0.6
0.10∼0.20
200
MTPTW-0015
1.3
0.05∼0.15
0.9
0.10∼0.20
200
MTPTW-0020
1.8
0.05∼0.15
1.2
0.10∼0.20
200
MTPTW-0025
2.2
0.05∼0.15
1.5
0.10∼0.20
200
MTPTW-0030
2.7
0.10∼0.20
1.8
0.15∼0.25
200
MTPTW-0035
3.2
0.10∼0.20
2.1
0.15∼0.25
200
MTPTW-0040
3.7
0.10∼0.20
2.4
0.15∼0.25
100
MTPTW-0045
4.2
0.10∼0.20
2.7
0.15∼0.25
100
MTPTW-0050
4.7
0.10∼0.20
3.1
0.15∼0.25
100
MTPTW-0055
5.3
0.10∼0.20
3.3
0.15∼0.25
100
MTPTW-0060
5.8
0.10∼0.20
3.6
0.20∼0.30
100
MTPTW-0065
6.3
0.10∼0.20
3.8
0.20∼0.30
100
MTPTW-0070
6.8
0.13∼0.23
4.2
0.20∼0.30
100
MTPTW-0075
7.3
0.13∼0.23
4.5
0.20∼0.30
100
MTPTW-0080
7.8
0.13∼0.23
4.8
0.20∼0.30
100
MTPTW-0085
8.3
0.13∼0.23
5.0
0.20∼0.30
100
MTPTW-0090
8.8
0.13∼0.23
5.3
0.20∼0.30
100
MTPTW-0095
9.3
0.13∼0.23
5.6
0.20∼0.30
100
MTPTW-0100
9.8
0.13∼0.23
5.9
0.20∼0.30
100



Part Number
As supplied (mm)
 After recovered (mm)

Standard Length
(Meter)
I.D.(min)
(D)
W. T.(nominal)
(W)
I.D.(max)
(d)
W.T.(nominal)
(w1)

4:1 Shrink ratio
MTP-4X0025
2.3
0.05∼0.15
0.62
0.20∼0.30
200
MTP-4X0030
2.8
0.05∼0.15
0.75
0.20∼0.30
200
MTP-4X0035
3.3
0.05∼0.15
0.87
0.25∼0.35
200
MTP-4X0040
3.8
0.05∼0.15
1.00
0.25∼0.35
100
MTP-4X0045
4.3
0.05∼0.15
1.12
0.25∼0.35
100
MTP-4X0050
4.8
0.05∼0.15
1.25
0.25∼0.35
100
MTP-4X0060
5.8
0.05∼0.15
1.50
0.25∼0.35
100
MTP-4X0070
6.8
0.05∼0.15
1.75
0.25∼0.35
100
MTP-4X0080
7.8
0.05∼0.15
2.00
0.25∼0.35
100
MTP-4X0090
8.8
0.05∼0.15
2.25
0.25∼0.35
100
MTP-4X0100
9.5
0.05∼0.15
2.50
0.25∼0.35
100
MTP-4X0110
10.5
0.05∼0.15
2.75
0.25∼0.35
100
MTP-4X0120
11.5
0.05∼0.15
3.00
0.25∼0.35
100
