Corrugated Metal Conduit Tube

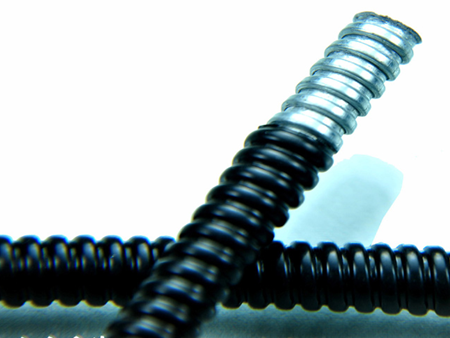

AJSG Metal Hose
Widely used for wire and cable protection of railway, automotive, mechanical engineering, shipbuilding and electrical industries.
Powered by Froala Editor
Powered by Froala Editor
FEATURES
• The product structure is single button type, which increases tensile strength, and it is not easy to break and deform.
• The product has good flexibility.
• Cables and wires can get through the product easily because of product’s internal smooth structure.
Powered by Froala Editor
Powered by Froala Editor
TYPICAL APPLICATIONS
Material data: Galvanized steel (inside) + PVC (outside)
- Operating temperature: -10℃~80℃
Standard color: Black
Powered by Froala Editor
Powered by Froala Editor
TECHNICAL DATA
Data not found
Powered by Froala Editor
DIMENSIONS
| Part no. | ID (mm) | OD (mm) | Bending radius(R±10%) (mm) | Packing (meter) |
| AJSG-006 | 6+0.5/-0 | 9.0+0.5/+0 | 24.0 | 200 |
| AJSG-008 | 8+0.5/-0 | 11.8+0.5/+0 | 25.0 | 100 |
| AJSG-010 | 10+0.5/-0 | 14.5+0.5/+0 | 32.0 | 100 |
| AJSG-012 | 12+0.5/-0 | 16.5+0.5/+0 | 33.0 | 100 |
| AJSG-015 | 15+0.5/-0 | 20.2+0.5/+0 | 36.0 | 100 |
| AJSG-016 | 16+0.5/-0 | 21.2+0.5/+0 | 40.0 | 100 |
| AJSG-019 | 19+0.5/-0 | 24.0+0.5/+0 | 45.0 | 50 |
| AJSG-020 | 20+0.5/-0 | 25.0+0.5/+0 | 47.0 | 50 |
| AJSG-022 | 22+0.5/-0 | 27.5+0.5/+0 | 58.0 | 50 |
| AJSG-025 | 25+0.5/-0 | 30.7+0.5/+0 | 61.0 | 50 |
| AJSG-032 | 32+0.5/-0 | 38.6+0.5/+0 | 68.0 | 25 |
| AJSG-038 | 38+0.5/-0 | 44.6+0.5/+0 | 81.0 | 25 |
| AJSG-051 | 51+1/-0 | 59.0-1/+0 | 113.0 | 15 |
| AJSG-064 | 64+1/-0 | 73.5-1/+0 | 145.0 | 15 |
| AJSG-075 | 75+2/-0 | 83.5-2/+0 | 180.0 | 10 |
| AJSG-080 | 80+2/-0 | 90.5-2/+0 | 220.0 | 10 |
| AJSG-100 | 100+2/-0 | 109.5-2/+0 | 310.0 | 5 |
